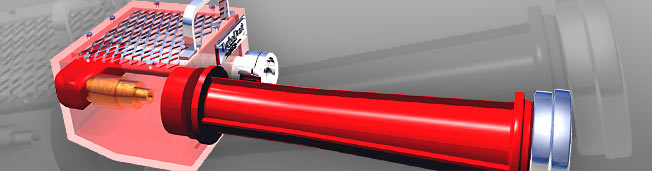

TurboDraft™ Fire Eductor

TurboDraft™ Fire Eductor

TurboDraft™ Fire Eductor provides fire departments with a dependable solution to access static water sources that are not readily accessible using conventional drafting techniques.

Utilizing eductor technology and water pressure from the supply engine/pumper, the TurboDraft™ Fire Eductor allows companies to tap into static sources such as lakes, ponds, streams, and swimming pools up to 250’ away from the apparatus. Quick and easy to set up, the TurboDraft™ can be deployed in a matter of minutes, using standard 2½” hose line and 5” LDH, to generate usable flows up to 670 GPM.

The TurboDraft™ Fire Eductor has been recognized by insurance agencies as an alternate water supply device. Water sources accessed using the TurboDraft™ have been given credit under the FSRS (Fire Suppression Rating Schedule) provided that other criteria such as accessibility and drought conditions have been met.

Schutte & Koerting has been a leading designer and manufacturer of equipment for the process and power industries since 1876. The company specializes in the production of vacuum systems, scrubber systems, water jet eductors, steam injection heaters, ejectors, and flow measuring equipment serving a variety of industries.

Categories: , ,
TurboDraft

Description

5″ TurboDraft Unit

5″ TurboDraft Unit Tap Water Sources in Remote Locations Schutte & Koerting’s TurboDraft™ Fire Eductor allows rural fire companies to tap into water supplies like ponds, streams, and swimming pools up to 250’ away and can generate flows up to 670 GPM.

The 5” TurboDraft™ unit is used primarily for accessing static water sources that are not easily reached using typical drafting techniques. The 5” unit can also be used at tanker fill sites during water shuttle operations, fire scene overhaul, transferring of contaminated liquids, dewatering of low lying areas and swimming pools, for direct fire attack, fire scene water management, accessing shallow static water, among others.

TurboDraft Operation:

  • Useable fire flow will vary based on elevation
  • and hose friction loss.

Features:

  • Overall Length: 39”
  • Weight: 52 lbs.
  • Connections: 2 1/2” NST Female Inlet; 5” Storz Male Outlet
  • Shipping Dimensions: 48”L x 16”W x 17”H
  • Shipping Weight: Domestic: 67.30 lbs.; International: 78.65 lbs.
2 1/2″ TurboDraft Unit

Tap Water Sources in Remote Locations Schutte & Koerting’s TurboDraft™ Fire Eductor allows fire companies to tap into water supplies like ponds, streams, and swimming pools up to 250’ away and can generate flows up to 264 GPM. Rural fire companies need creative solutions to utilize water sources that are not accessible using typical drafting techniques.

TurboDraft Operation:

  • Useable fire flow will vary based on elevation and hose friction loss.

Features:

  • Overall Length: 30”
  • Weight: 20 lbs.
  • Connections: 1 1/2” NST Female Inlet; 2 1/2” NST Male Outlet
  • Shipping Dimensions: 36”L x 12”W x 12”H
  • Shipping Weight: 45 lbs.
